Devices

AP-XPS

loading
loading

Near Ambient Pressure XPS

Temperature for treatment:
<1000 K (H2, He 800 K)

Reaction System:
20 bar, <2270 K

Measure System:
25 mbar, <600 K

Advantages:
Cross the pressure gap;
Control the sample environment;
Control the sample environment;
Be fast;


[Back to Top]

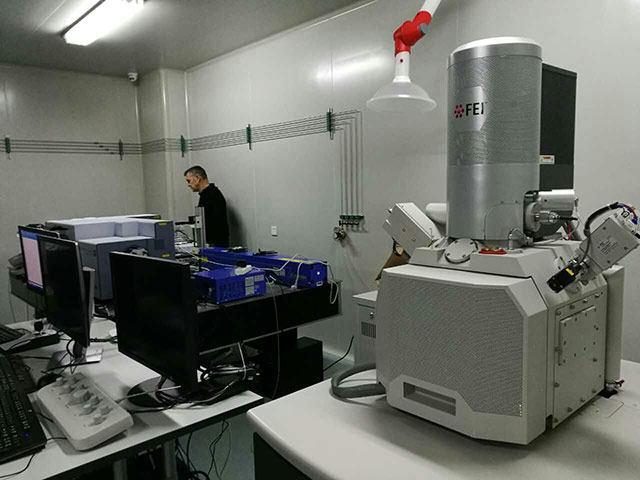

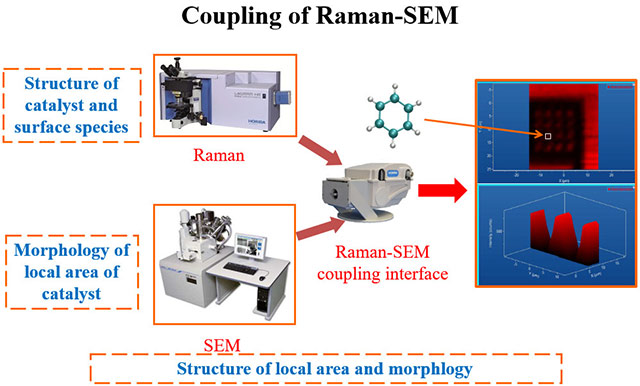

Operando Raman-SEM

Loading
Loading



[Back to Top]




Raman

RamanRamanRaman
RamanRamanRaman
Raman

HORIBA Jobin Yvon LabRAM HR

Laser:
244 nm laser
514 nm laser
633 nm laser
Optical Components:
Rejection Dielectric Edge filter at 244 nm
Dielectric Edge and Interference filters at 514 nm
Dielectric Edge and Interference filters at 633 nm
15X UVB objective
50X LWD visible objective
2400 gr/mm holographic grating blazed at 250 nm
Optics for commuting from internal to external laser
Advantages:
Temperature: ambient temperature - 1000 °C
Highly corrosive gases can be used
Pressure up to 50 bar
Gases remain at elevated temperatures preventing condensation before analysis

[Back to Top]




HPLC-ICP-MS

ICP-MSICP-MSICP-MS
ICP-MS

Inductively Coupled Plasma - Mass Spectrometry

Instrument Type:
NexIon 300x
Manufacturer:
Perkin Elmer
Multielement:
most of the Periodic Table-Broadest
Detection Limits:
<1 ng/L (ppt) (femto Molar) - Most sensitive
Speed:
as fast as 200 Ás per analyte (1 sec typical) - Fastest
Selectivity:
excellent for trace levels, even in complex samples
Dynamic Range:
over 9 orders of magnitude - Largest
Species Independent Calibration:
element, not molecule or oxidation state dependent
Application:
Food and Agriculture, Semiconductor, Clinical and Pharmaceutical, Geological, Nuclear, Forensic, Hemical, Petrochemical etc.

[Back to Top]




IR

IRIRIR
IRIR
IR

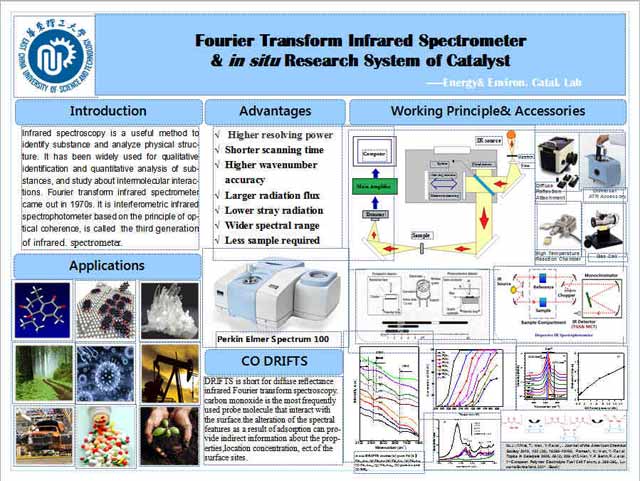

Fourier Transform Infrared Spectrometer

Instrument:

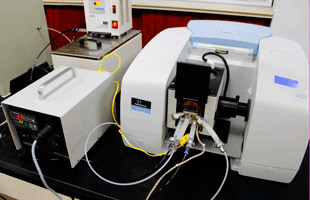

Spectrum 100 Fourier Transform Infrared Spectrometer
Manufacturer:
PerkinElmer
Detector:
MIR TGS, MCT
Accessories:

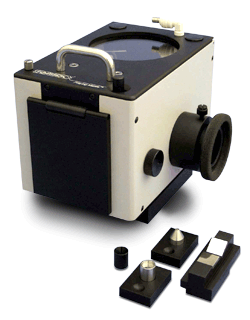

Diffuse Reflectance accessory

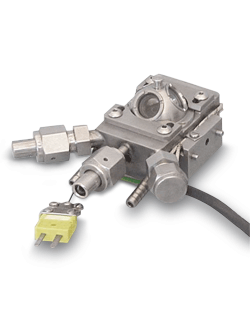

High Temperature Reaction Chamber

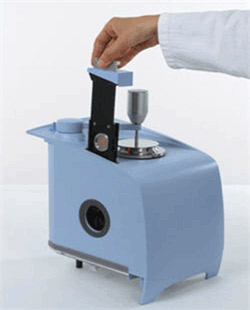

Universal ATR Accessory


In situ IR transmission accessory & Pyridine adsorption cell

[Back to Top]
